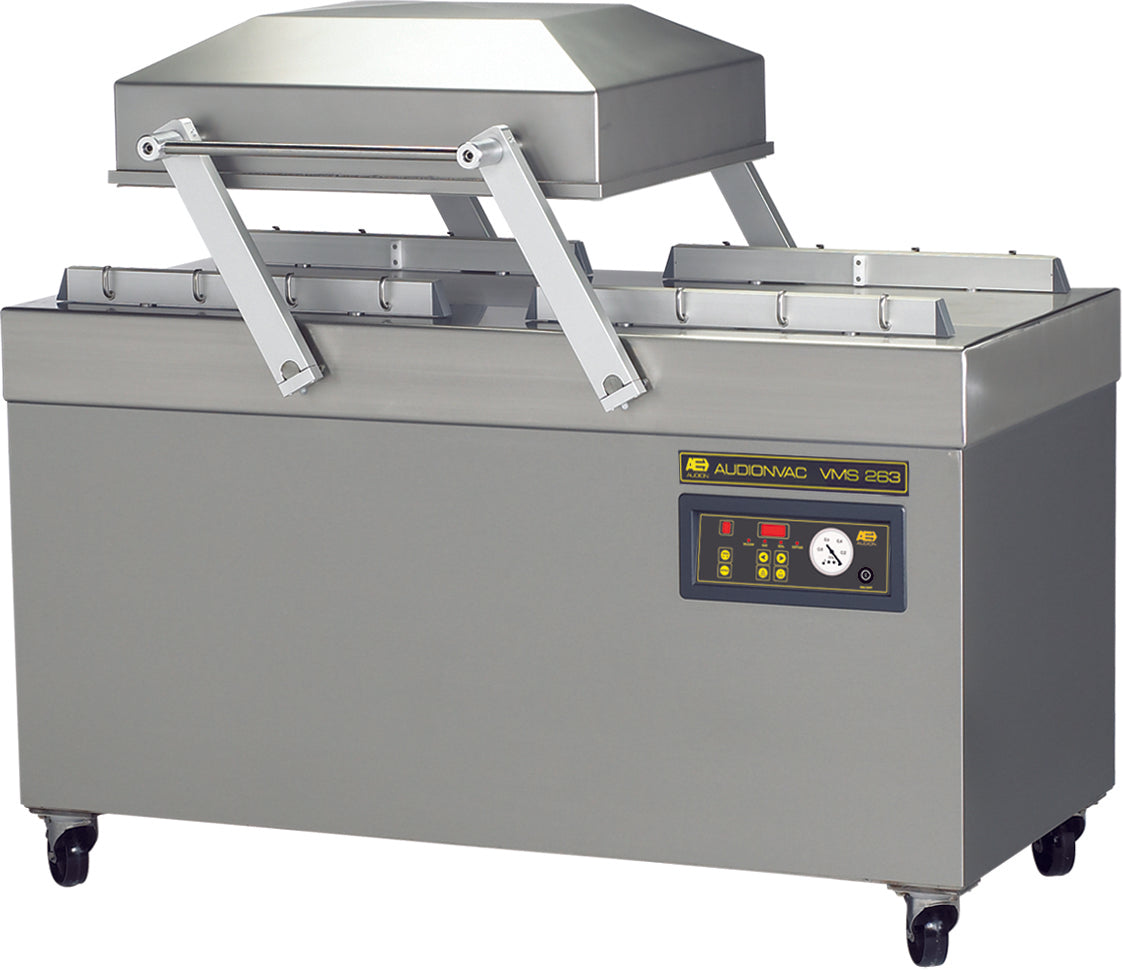

Audion Vacuum Packer Double-Chamber | 100m3 Busch Pump - VMS 263
Enquiry Only
High-value machinery requires a technical consultation.
Heavy-duty, floor-standing double-chamber vacuum machine engineered for continuous, multi-shift food processing plants, commercial butcheries, and industrial packaging operations. Powered by a high-output 100 m³/h Busch pump, it combines an alternating swing-lid workflow with a flat stainless-steel working plate to eliminate operator downtime and maximise packaging throughput.
Key Features:
-
Continuous Swing-Lid Operation: Dual-chamber design eliminates idle time by allowing operators to unload and reload one chamber while the opposite side cycles under deep vacuum.
-
Heavy-Duty 100 m³/h Busch Pump: Industrial-grade vacuum pump delivers rapid air evacuation (15–40 second cycles) and consistent deep vacuum levels during intensive, continuous production.
-

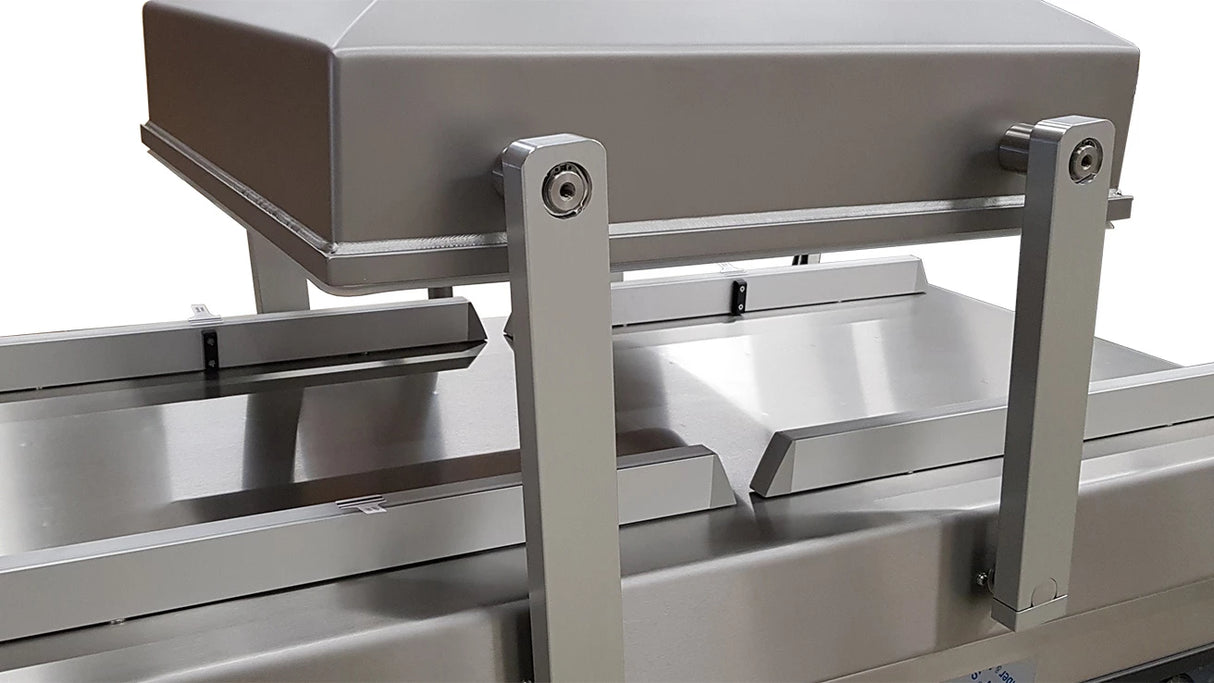

Ergonomic Flat Stainless Deck: Completely flat working surface without sunken wells allows operators to slide heavy bulk cuts smoothly across the deck, reducing handling fatigue and simplifying washdown sanitisation.
-
Twin 620 mm Seal Bars per Chamber: Front-and-rear seal bar configuration provides 1,240 mm of total usable seal length per chamber, accommodating large primal cuts or multiple pouches simultaneously.
-
Soft-Air Controlled Decompression (Standard): Smooth, gradual air re-entry protects delicate foods and prevents punctures from sharp bones or rigid industrial parts.
-
IP65 Digital 10-Programme Control: Water- and dust-protected interface stores and recalls exact vacuum, gas flush, and sealing parameters for fast, repeatable product changeovers.
-
Dutch Build Quality: Manufactured in the Netherlands with a robust stainless-steel cabinet, flat deck, and wireless removable seal bars; backed by a 3-year warranty.
Specifications:
| Model | Audion VMS 263 |
| Vacuum Pump | 100 m³/h Busch vacuum pump |
| Chamber Layout | Dual alternating chambers with balanced swing lid (Flat Deck design) |

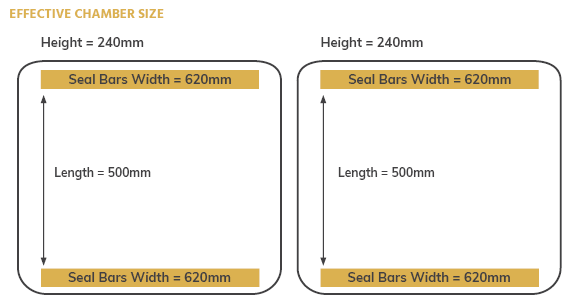

| Usable Chamber Dimensions | 2× (620 mm W × 500 mm L × 240 mm H) |
| Seal Bars | 2× 620 mm per chamber (Front & Back, wireless contacts) |
| Seal Configuration | Double seal (2 × 3.5 mm convex wires) |
| Cycle Time | 15–40 seconds |
| Machine Weight | ~345 kg |
| Electrical Rating | 400 V / 3-Phase / 50 Hz (standard) |
| Construction | Industrial stainless-steel chassis, flat working plate, and heavy-duty swing lid |
| Control Panel | IP65-rated digital controller with 10-programme memory |
| Standard Inclusions | Soft Air, pump-conditioning maintenance cycle, high-density insert plates |
| Factory Options | Gas Flush (MAP), Sensor Control, Liquid Control sensor, 10 mm wide seal, Cut-off seal, Bi-active sealing, inclined liquid insert plates |
Note: This machine is built and custom-configured to order in the Netherlands. Contact our technical team to verify electrical specifications, tooling requirements, and current factory lead times.
