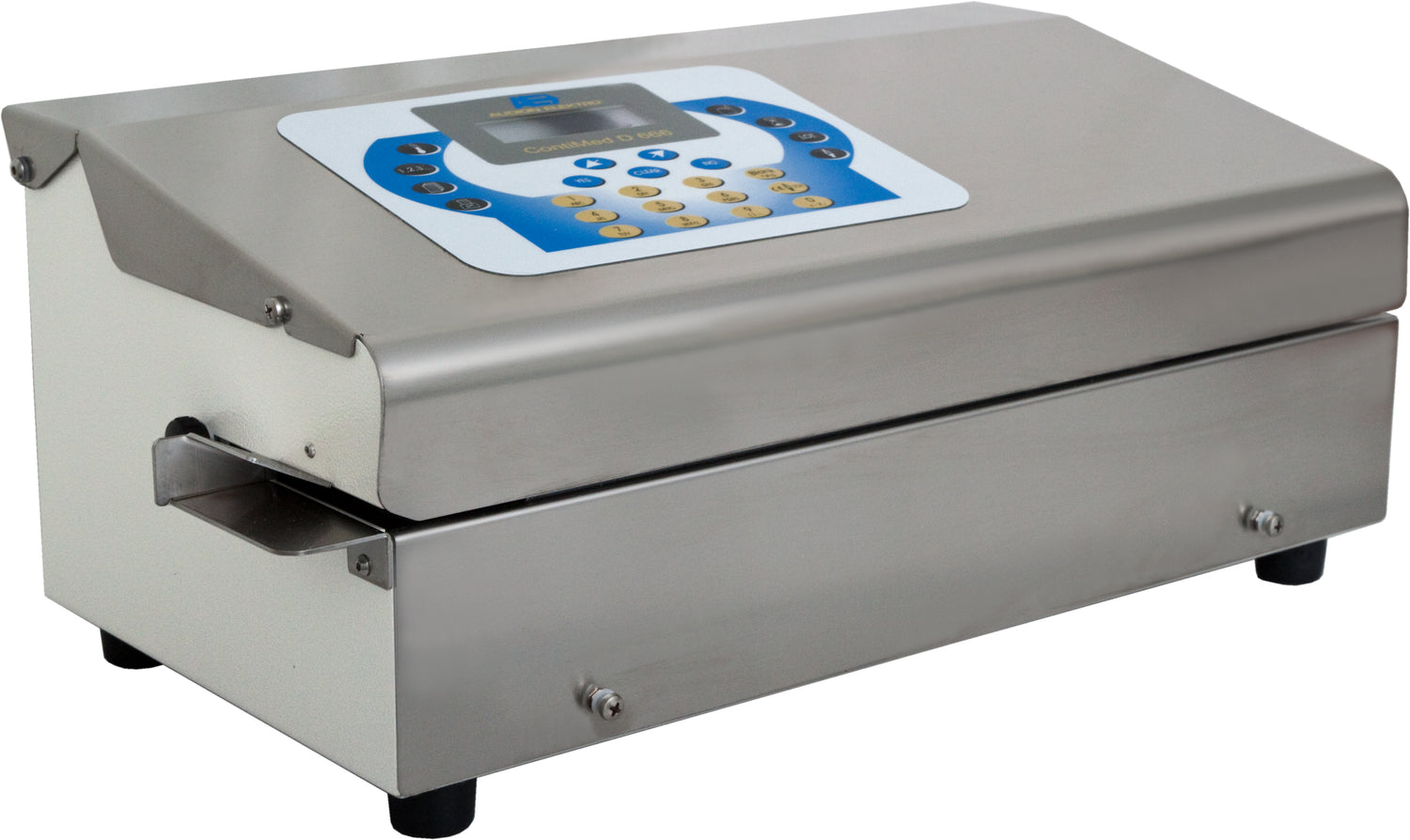

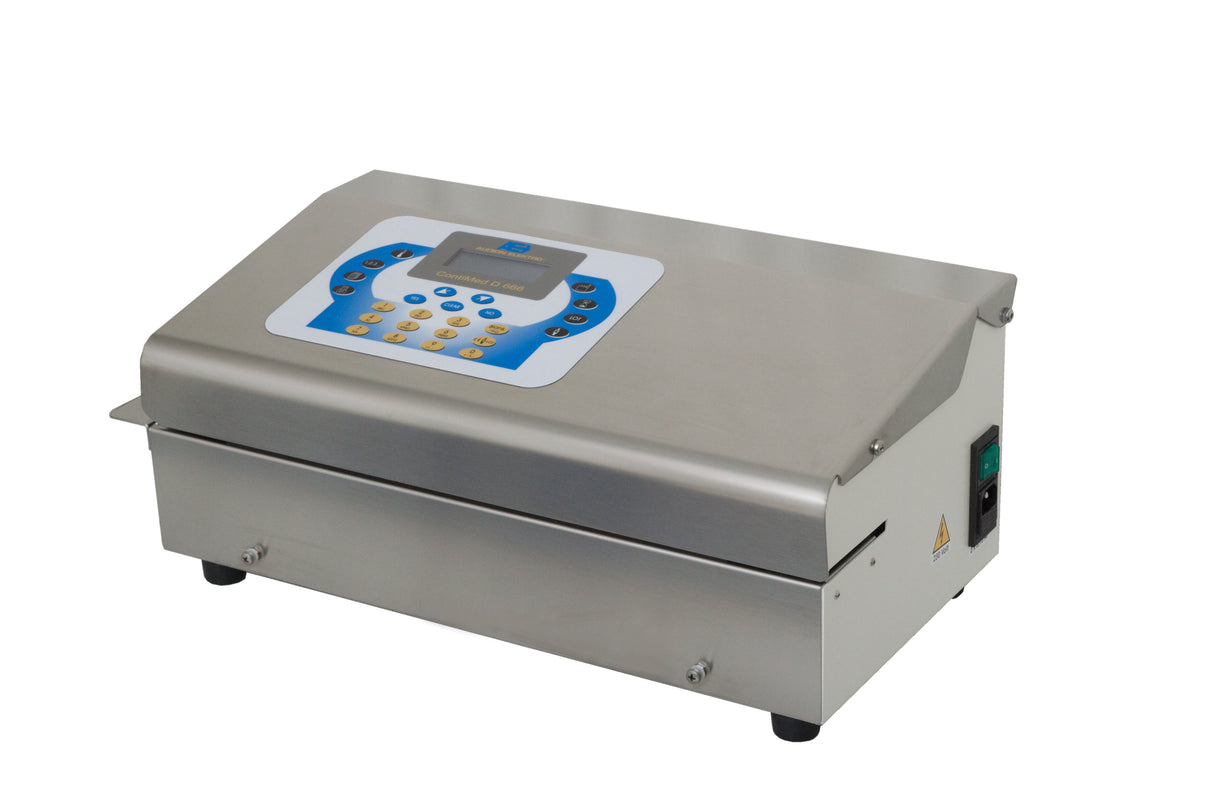

Audion Contimed D 666 MPCV: Validatable Rotary Sealer

The Audion Contimed D 666 MPCV is a high-performance rotary heat sealer designed for the medical and sterile packaging industries. It provides a consistent 15mm multiline seal for diverse sterilisation pouches and is fully validatable to international standards.

Compliance & Validation

• Standards: Fully compliant with ISO 11607-2, ISO/TS 16775, EN 868-5, and DIN 58953-7.
• Monitoring: Continuous control of seal temperature, speed, and force.
• Safety: Integrated alarm stop function if parameters fall outside set tolerances
• Accuracy: Temperature control within ±1%.

Technical Specifications

• Product Code: D666 MPCV
• Machine Type: Tabletop semi-automatic band sealer.
• Throughput Speed: 10 metres/minute (fixed).
• Seal Width: 15mm multiline seal.
• Temperature Range: 0 – 200°C.
• Seal Force: 80N – 120N.
• Dimensions: 554mm (W) x 270mm (D) x 222mm (H).
• Weight: 20kg.

Traceability & Data

• Integrated Printer: 9-dot matrix printer for production data (Date, Expiry, Operator, Batch, Temperature, Force, Speed, Pouch ID).
• Connectivity: USB and RS232 ports for data storage and analysis
• Label Support: Optional external label printer for simultaneous labelling and barcode scanning.

Material Compatibility

• Suitable for: Medical pouches (Paper/PP), Tyvek®, Paper bags (EN 868-4), Aluminium laminate, PA/PE, and PP (OPP/BOPP).
• Note: Not suitable for single plastic films such as PE.
• Max Thickness: 2 x 100 micron.

Optional Accessories

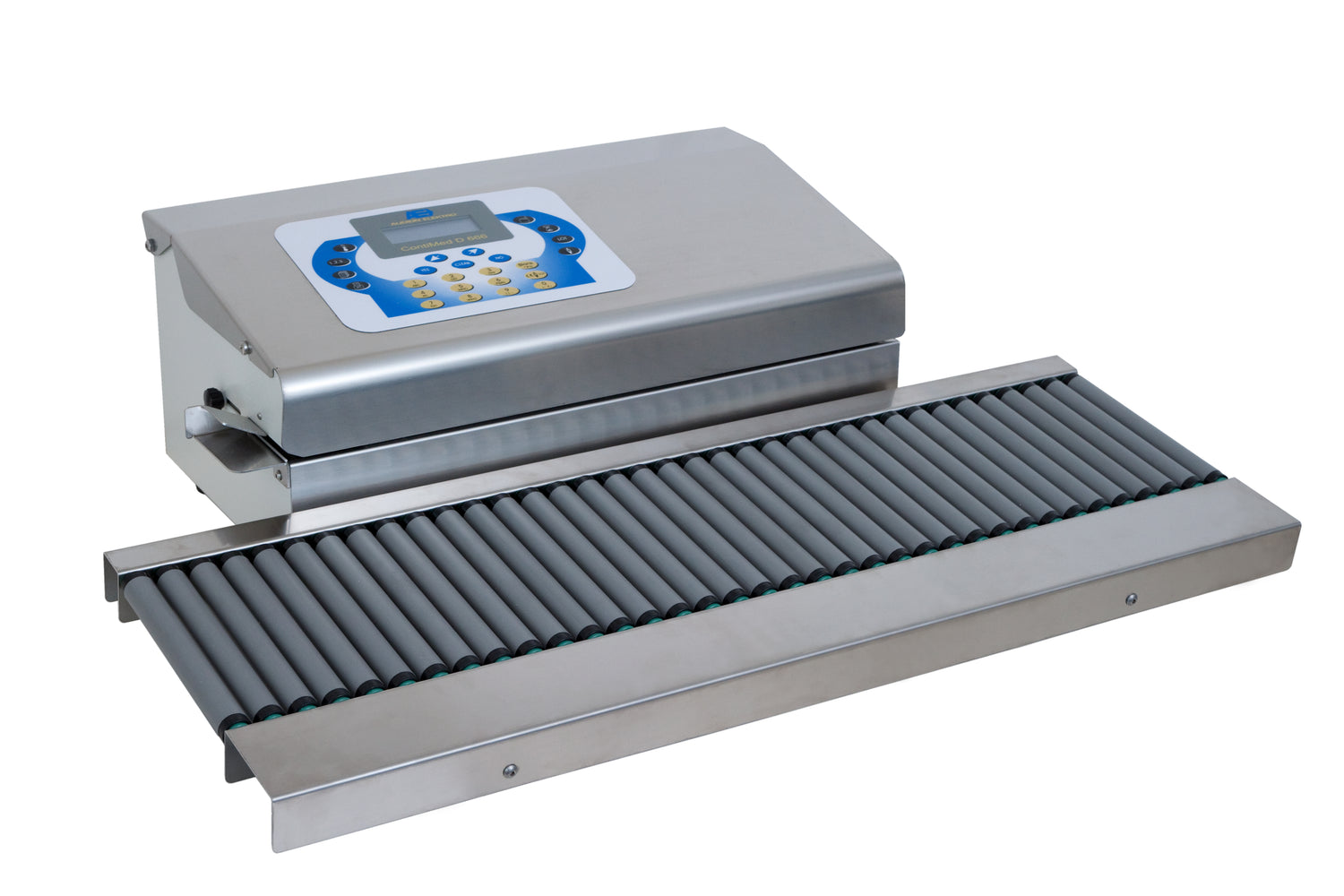

• Front worktable or roller-table for heavy/long pouches.
• Barcode scanner for automated data entry
• External label printer.
