Audion Dip Tank | VDT 6080
Enquire now
For enquiries about multiple products use our Quote feature, no login necessary!
Single Product Enquiry: Audion Dip Tank | VDT 6080

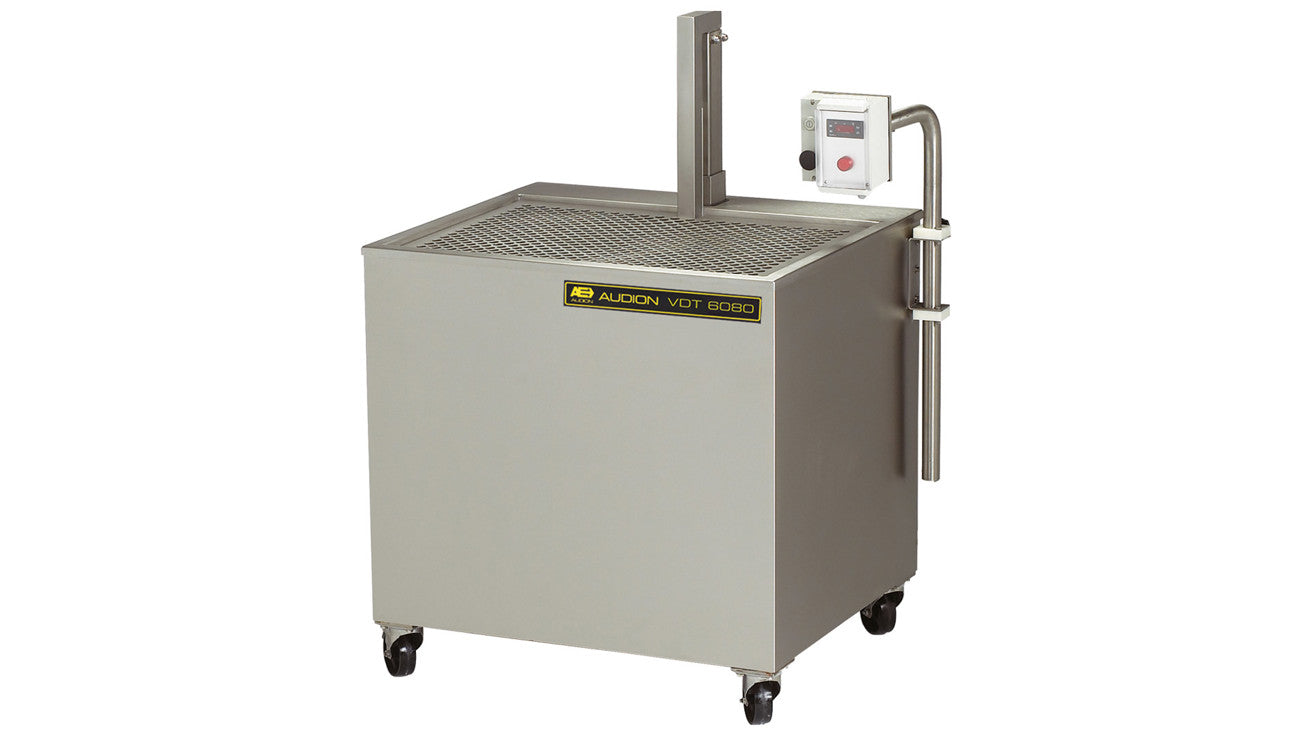

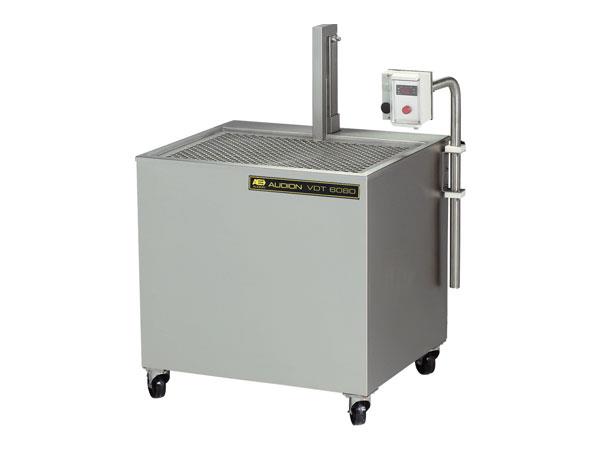

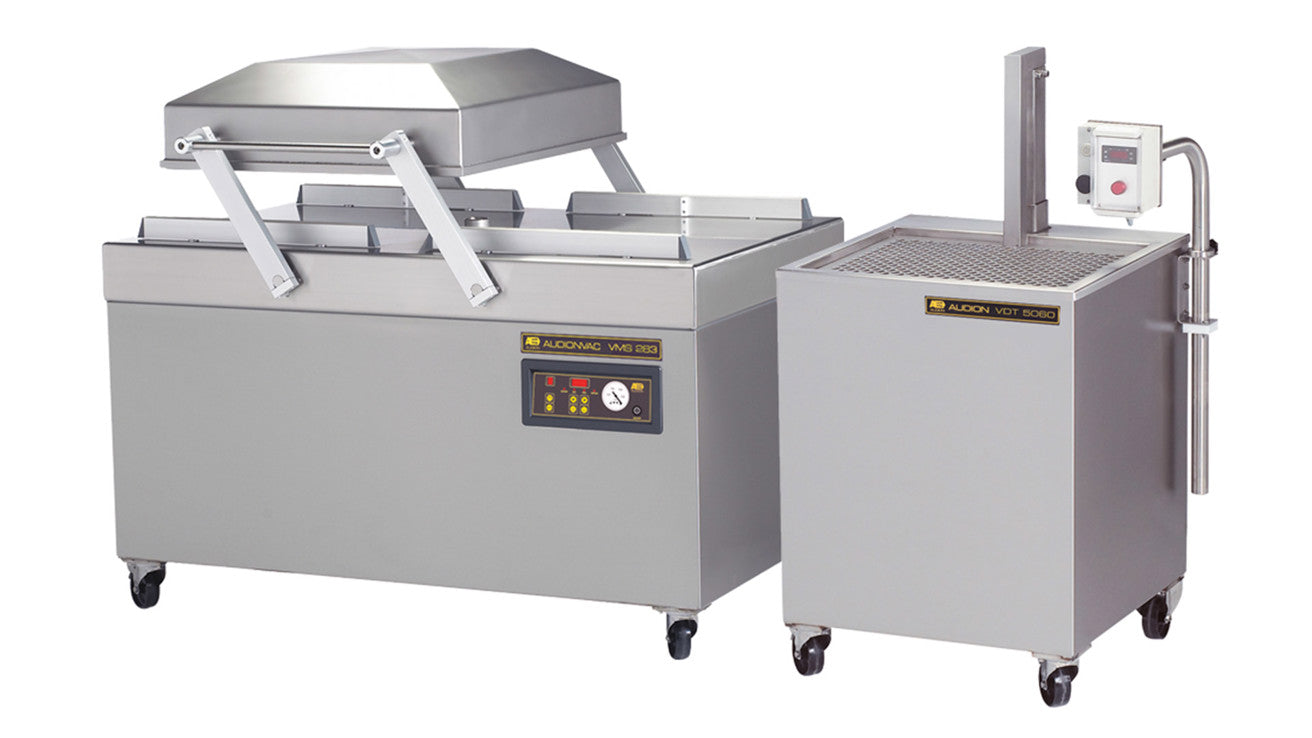

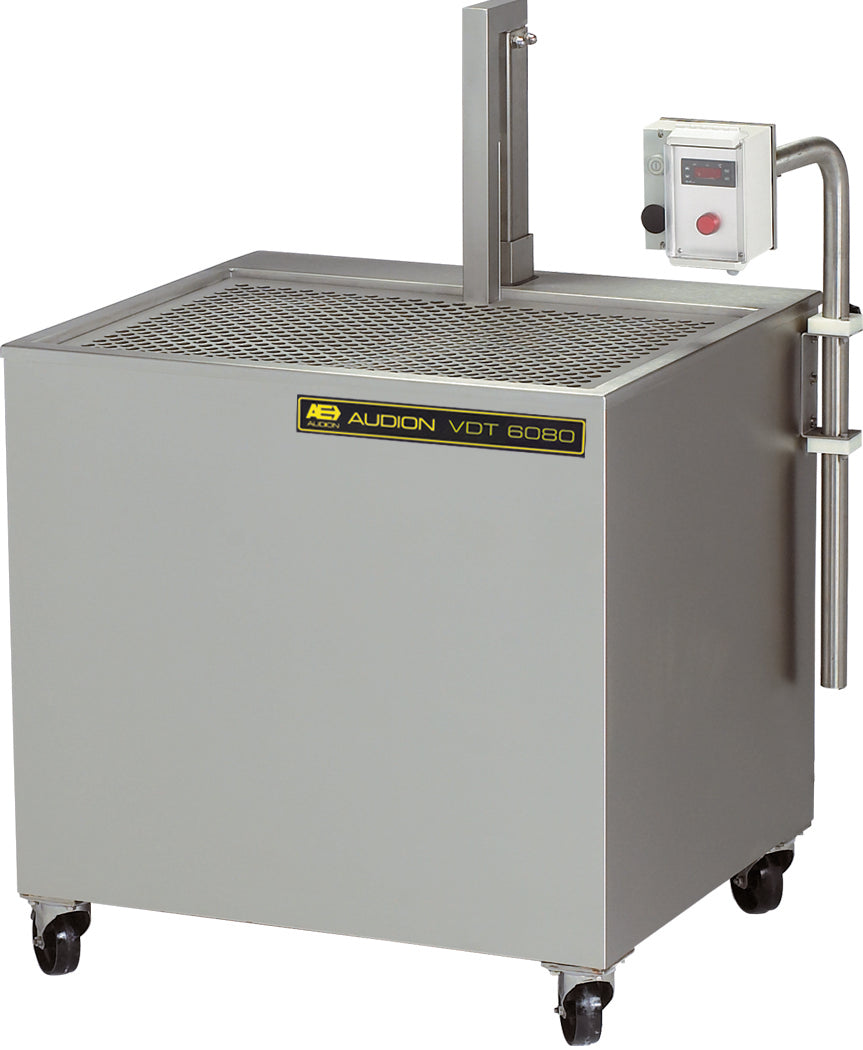

The VDT 6080 is the largest dip tank in the Audion range, designed to provide a professional "second skin" finish to vacuum-packed products. With a spacious usable bath size of 600 x 800 mm, it is the ideal solution for creating high-quality contoured packaging for larger-sized items. This unit works alongside a vacuum packer or power sealer to shrink excess plastic using hot water, eliminating unsightly flaps and boosting both protection and presentation.
Key Features for Peak Performance
- Intelligent Control: Equipped with a user-friendly digital control panel featuring accurate temperature control, adjustable dipping cycle time, and an automatic water overflow control system.
- Energy Efficiency: Designed for minimal power consumption with high-quality insulation for constant temperature distribution and specialized insulated balls to prevent heat loss and evaporation.
- Hygienic Design: Constructed from high-quality stainless steel with a built-in drain tap on the side, making the machine easy to drain and clean.
- Safe Operation: Features a hydraulic drive system and automatic water level control to ensure smooth, safe, and reliable operation.
Core Business Benefits
- Superior Presentation: Creates a tight, professional shrink finish around the product, enhancing shelf appeal.
- Reliability: Built with robust materials and a clever design developed to last, backed by a 3-year warranty.
- Versatility: Large chamber dimensions allow for the processing of bulky or large quantities of products in a single cycle.
Specifications
| Model | VDT 6080 |
| Type | Dip Tank / Shrink Tank |
| Machine Dimensions | 880 x 1000 x 1320 mm |
| Machine Weight | 155kg |
| Chamber Dimensions | 600 x 800 x 220 mm |
| Dipping Depth | 220mm |
| Max Loading | 60kg |
| Cycle Time | 3 - 5 Sec |
| Voltage | 400V-3-50Hz |
| Power | 15 kw |
| Weight | 155 kg |
| Material | Stainless Steel |
