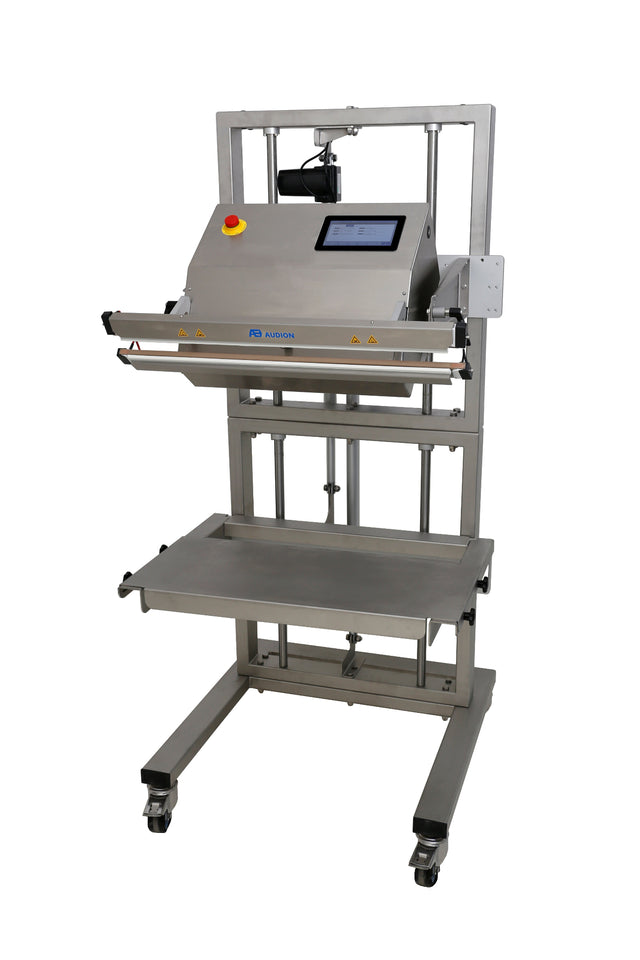

Audion Power Sealer | Validatable Vacuum Sealer - VAC PSR TC 520
Enquiry Only
High-value machinery requires a technical consultation.
Industrial validatable impulse vacuum sealer engineered for high-specification food processing, medical device packaging, and technical manufacturing. Combines bi-active impulse sealing, an integrated vacuum and gas flush (MAP) nozzle system, and real-time parameter logging to guarantee hermetic seals and auditable process validation.
Key Features:
- Audion Temperature Controller (ATC): Precision impulse heating with real-time temperature verification and automatic cycle stops if parameters drift outside set tolerances.
- Full Process Validation: Generates audit-ready CSV batch reports logging machine ID, operator login, target parameters, actual seal readings, and pass/fail results via USB.
- Bi-Active 8 mm Sealing: Pneumatically actuated top and bottom heated seal bars penetrate heavy barrier pouches and foil laminates up to 2 × 200 microns.
- Integrated Venturi Vacuum & Gas Flush: Low-maintenance 10 m³/h Venturi system rapidly evacuates air and injects inert gas to extend shelf life, eliminate oxidation, or reduce bulk package volume.
- Touchscreen Interface: 50-recipe memory stores dedicated sealing temperatures, cooling limits, and vacuum/gas timing for fast product changeovers.
- Ergonomic Open-Head Design: Foot-pedal operation paired with an unobstructed seal area ensures fast, precise pouch alignment with minimal operator fatigue.
Specifications
| Feature | Details |
| Model | VAC PSR TC 520 (720 mm and 1020 mm models available) |
| Seal Bar Length | 520 mm |
| Seal Width & Type | 8 mm bi-active impulse seal (5 mm and 10 mm profiles optional) |
| Atmosphere Control | Integrated vacuum and MAP gas flush nozzle |
| Vacuum System | Venturi pump: 10 m³/h standard (20 m³/h optional) |
| Material Compatibility | Polyethylene (PE), aluminium foil laminates, medical barrier films |
| Maximum Film Thickness | Up to 2 × 200 microns |
| Chassis Construction | AISI 304 stainless steel |
| Actuation & Drive | Pneumatic with electric foot-pedal control |
| Pneumatic Requirements | Clean, dry compressed air (6 to 10 bar) |
| Validation & Data Export | Real-time parameter monitoring with CSV log export via USB |
| Compliance Standards | EN 60204-1, ISO 12100, ISO 4414, ISO 14118 |
Note: This machine is custom-configured and manufactured to order in the Netherlands. Contact our technical team to discuss tooling options, nozzle configurations, and current production lead times.
Local Service & Support:
- Commercial Warranty: Backed by the Audion factory manufacturer warranty (excludes consumable wear parts and damage from contaminated air lines).
- Consumables & Spares: Genuine Audion wear parts (heating wires, PTFE zones, silicone backing strips) and industrial support frames stocked locally in New Zealand.
- Technical Service: On-site installation guidance, annual calibration support, and scheduled preventative maintenance services.
