Audion Vacuum Packer Double-Chamber | 300m3 Bush Pump - VMS 883

SKU: VMS883

Enquiry Only

High-value machinery requires a technical consultation.


High-capacity, floor-standing double-chamber vacuum machine engineered for large-scale meat processing plants, wholesale dairy packing, and heavy industrial manufacturing. Equipped with a high-volume 300 m³/h Busch vacuum pump, four 840 mm seal bars, and a flat stainless deck, it delivers continuous 24/7 swing-lid production with ultra-fast cycle times.

Key Features:

  • Continuous Swing-Lid Throughput: Alternating dual-chamber workflow eliminates operator downtime, enabling continuous unloading and reloading while the opposite chamber cycles under deep vacuum.
  • Heavy-Duty 300 m³/h Busch Vacuum Pump: Delivers rapid evacuation speeds (10–30 second cycles) and consistent deep vacuum levels across high-volume packaging shifts.
  • Massive Loading Capacity (255 mm Depth): Dual flat decks provide 255 mm of vertical clearance to handle large primal cuts, 20 kg bulk cheese blocks, or multi-pouch batches up to 830 mm × 820 mm.
  • Four 840 mm Wireless Seal Bars: Front-and-rear seal bar layout (two bars per chamber) provides 1,680 mm of usable seal length per cycle, complete with wireless contacts for tool-free removal and washdown sanitisation.
  • Ergonomic Counterbalanced Lid: Counterbalanced swing-arm mechanism allows single-operator handling with minimal physical strain across long production runs.
  • Full HACCP & Food Safety Compliance: Seamless stainless-steel chassis, flat working deck, and rounded corners eliminate hygiene traps and streamline sanitation.
  • Soft-Air Controlled Decompression (Standard): Controlled venting reintroduces air gradually to protect fragile items and eliminate bag punctures from sharp bones or rigid parts.

Specifications:

Feature Details
Model Audion VMS-883
Vacuum Pump 300 m³/h Busch vacuum pump
Chamber Layout Dual alternating chambers with counterbalanced swing lid (Flat Deck design)

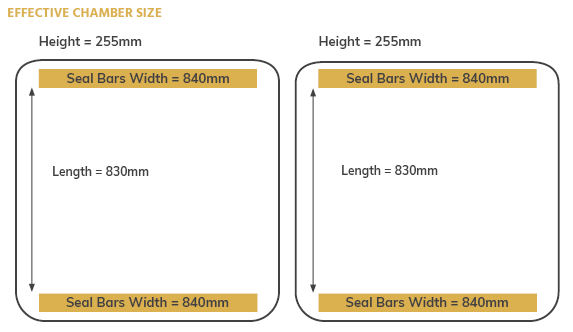

Usable Chamber Dimensions 2× (840 mm W × 830 mm L × 255 mm H)
Maximum Bag Size Up to 830 mm × 820 mm
Seal Bars 4× 840 mm total (2× Front & Back per chamber, wireless contacts)
Seal Configuration Double seal (2 × 3.5 mm convex wires)
Cycle Time 10–30 seconds
Machine Weight ~685 kg
Electrical Rating 400 V / 3-Phase / 50 Hz (3.3 – 4.5 kW)
Chassis Construction Heavy-duty stainless steel with flat working deck
Standard Inclusions Soft Air, 10-programme digital memory, pump-conditioning maintenance program, high-density insert plates
Factory Options Automatic pneumatic lid movement, Gas Flush (MAP), Sensor Control, Liquid Control sensor, Bi-active sealing, 10 mm wide seal, Cut-off seal
Note: This machine is built and custom-configured to order in the Netherlands. Contact our technical team to verify plant electrical prerequisites, compressed air supply for automated lid options, and current factory lead times.
