Audion Vacuum Packer Double-Chamber | 63m3 Busch Pump VMS 253

SKU: VMS253

Enquiry Only

High-value machinery requires a technical consultation.


Floor-standing, heavy-duty double-chamber vacuum machine engineered for high-throughput food processing plants, wholesale butcheries, and industrial packaging. Combines an industrial 63 m³/h Busch vacuum pump with a continuous swing-lid workflow and a flat stainless-steel deck, allowing operators to load one chamber while the opposite side cycles under deep vacuum.

Key Features:

  • Continuous Swing-Lid Operation: Dual-chamber design eliminates machine downtime, allowing operators to unload and reload one side while the second chamber cycles.
  • Ergonomic Flat Working Deck: Completely flat stainless-steel bed without sunken wells allows smooth sliding of heavy bulk packs and easy, washdown sanitation.
  • Twin 620 mm Seal Bars per Chamber: Front-and-rear seal bar configuration provides 1,240 mm of total usable seal length per cycle to handle large primals or multiple pouches simultaneously.
  • High-Capacity 63 m³/h Busch Pump: Delivers fast evacuation speeds (15–40 second cycles) and consistent, deep vacuum levels under intensive multi-shift production.
  • Soft-Air Decompression (Standard): Controlled, gradual air re-entry prevents bone punctures, protects delicate goods, and eliminates product crush.
  • Digital 10-Programme Storage: User-friendly digital interface stores and recalls exact vacuum, gas flush, and seal timing presets for fast recipe changeovers.
  • Heavy Industrial Build: Manufactured in the Netherlands with a robust stainless-steel chassis, cast aluminium swing hood, and wireless removable seal bars; backed by a 3-year warranty.

Specifications:

Feature Details
Model Audion VMS-253
Vacuum Pump 63 m³/h Busch vacuum pump
Chamber Layout Dual alternating chambers with balanced swing lid (Flat Deck design)

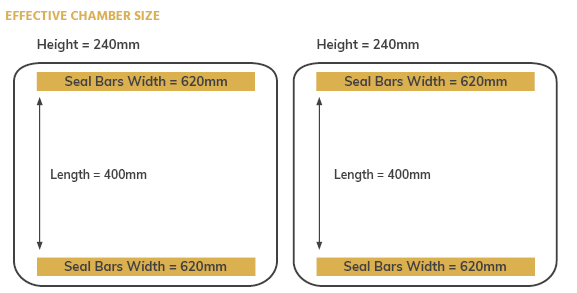

Usable Chamber Dimensions 2× (620 mm W × 400 mm L × 240 mm H)
Seal Bars 2× 620 mm per chamber (Front & Back, wireless contacts)
Seal Configuration Double seal (2 × 3.5 mm convex wires)
Cycle Time 15–40 seconds
Machine Weight ~310 kg
Electrical Rating 400 V / 3-Phase / 50 Hz (standard)
Construction Heavy-duty stainless-steel cabinet and flat deck, cast aluminium lid
Standard Inclusions Soft Air, 10-programme digital memory, pump-conditioning maintenance program, high-density insert plates
Factory Options Gas Flush (MAP), Sensor Control, Liquid Control (boiling point detection), 10 mm wide seal, Cut-off seal, Bi-active sealing



Note: This machine is built and custom-configured to order in the Netherlands. Please contact our technical team to confirm factory lead times, electrical requirements, and tooling configurations.
