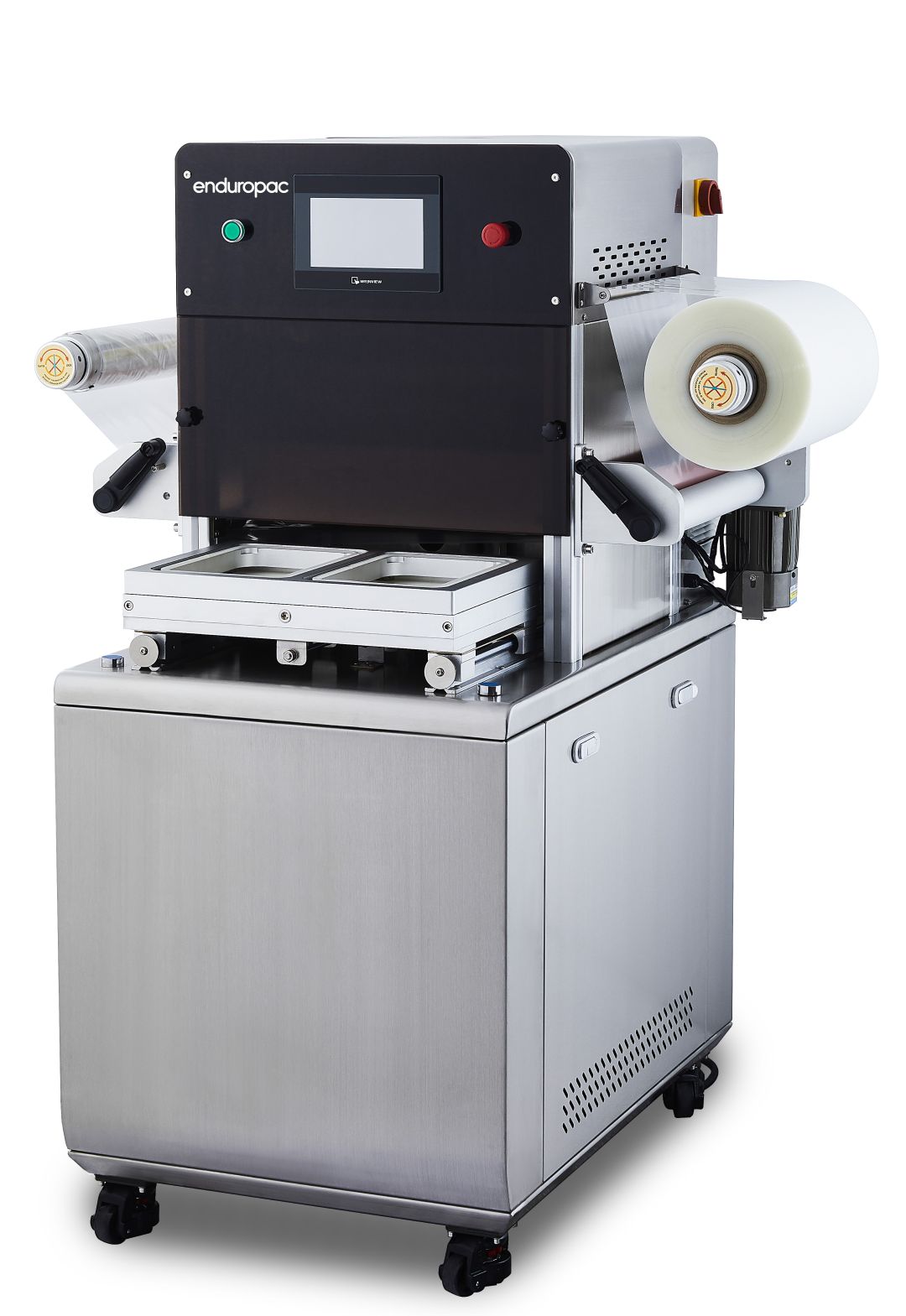

Enduropac VS330 Semi-Automatic Vacuum Skin Film Tray Sealer
Enquiry Only
High-value machinery requires a technical consultation.
igh-Capacity Floor Model Vacuum Skin Sealer
The Enduropac VS330 is a heavy-duty floor model tray sealer engineered for high quality
vacuum skin film packaging. Using a a premium Busch 40 m³/h vacuum pump, the system draws a precise negative pressure to anchor the barrier film flawlessly around the product.
Operational Benefits
The machine draws a precise negative vacuum pressure to tightly wrap film over the product, perfectly extending freshness, texture, and visual presentation.
Flawless seal integrity is guaranteed by a hermetic, leak-proof finish featuring automated film trimming along the tray edge.
For reliable operator safety, the user-friendly automation uses a semi-automatic, two-button start to control automatic carrier entry and exit.
Tool Formats
The internal tooling is interchangeable and can be customised
for your specific packaging requirements.
Processing Capacity
Throughput corresponds to the selected tooling format.
| Tool Format | Max Tray Size (WxLxD) | Per/Hour |

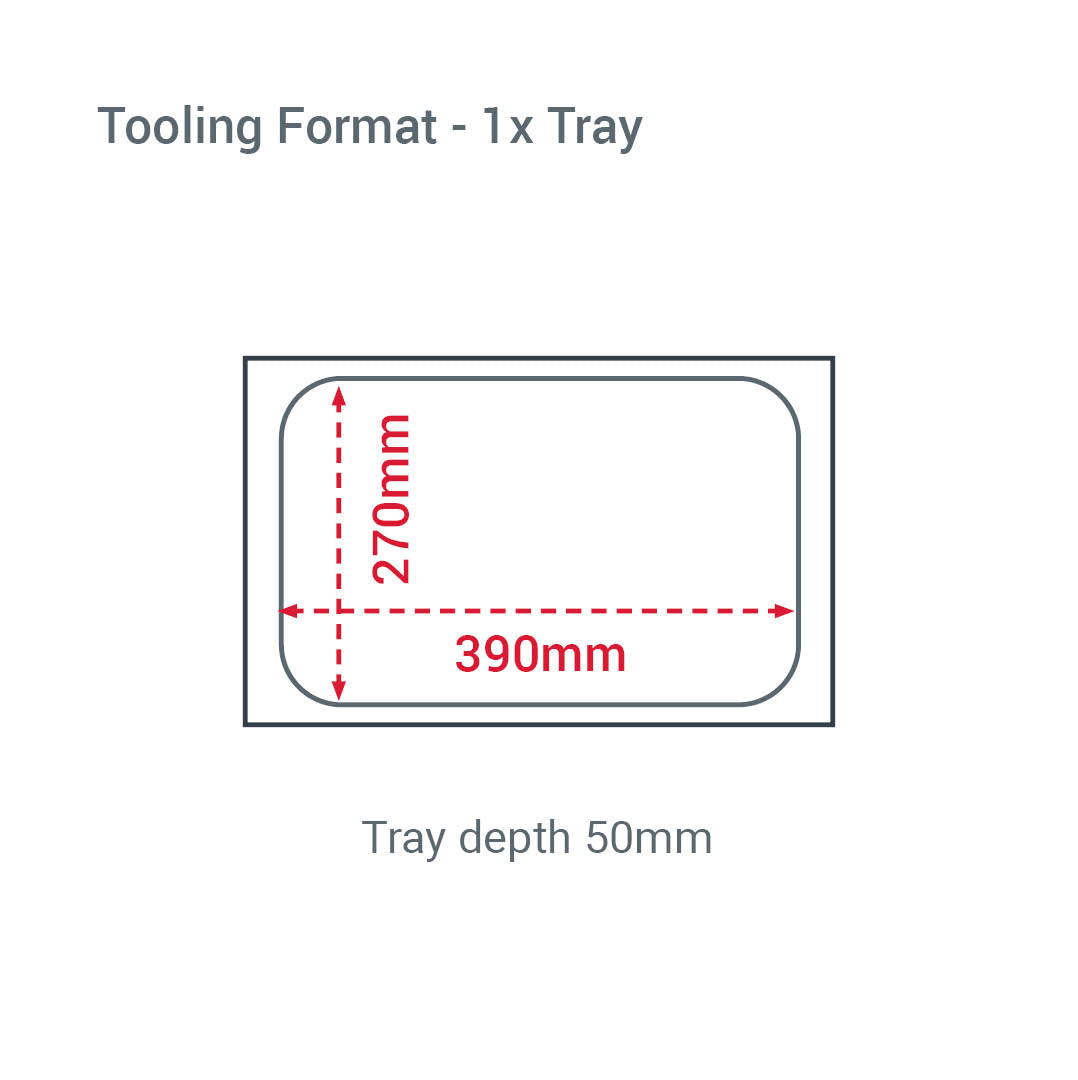

| 1 Tray | 390x270x50mm | 180pcs |

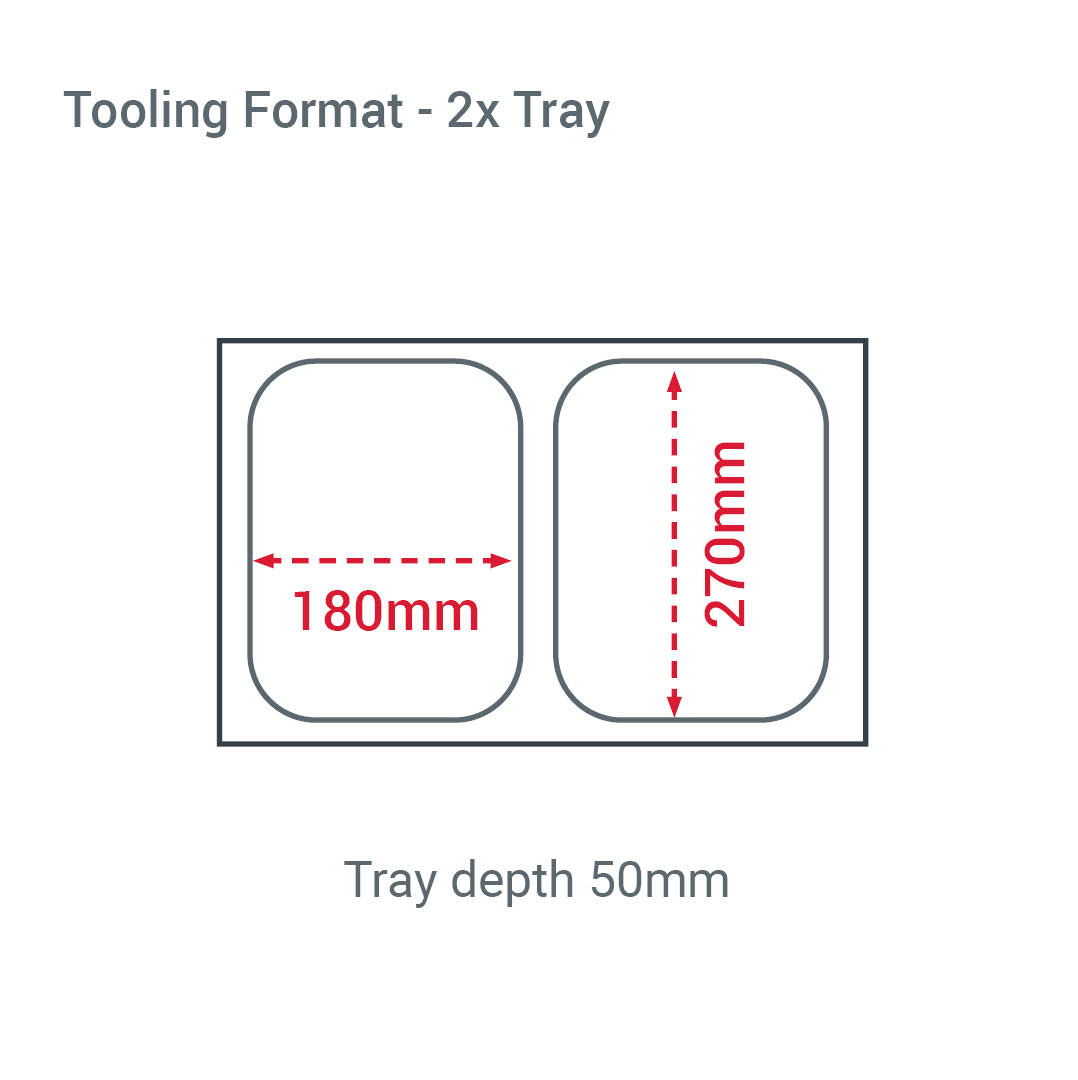

| 2 Trays | 180x270x50mm | 360pcs |
Technical Requirements
| Model | EP-VS330 |
| Construction | Stainless steel chassis |
| Control | Digital touch screen control panel |
| Vacuum Pump Capacity | 40 m³/h (Bush Pump) |
| Electrical Requirement | 380V / 50Hz (3-Phase) |
| Pneumatic Requirement | External 0.6–0.7 MPa constant air supply (10mm dia. air hose) |
| Machine Dimensions | 980mm (W) x 950mm (D) x 1430mm (H) |
| Machine Net Weight | 215kg |
| Maximum Film Width | 320mm |
| Maximum Film Diameter | 280mm |
Utility Requirements
Electrical: Three-phase connection (plug format TBC)
Pneumatic-External Compressor: Consistent supply of compressed air at 0.6–0.7 MPa. Connection requires a 10mm diameter pressure air hose.
Warranty
12-Month Commercial Warranty (Parts & Labour).
