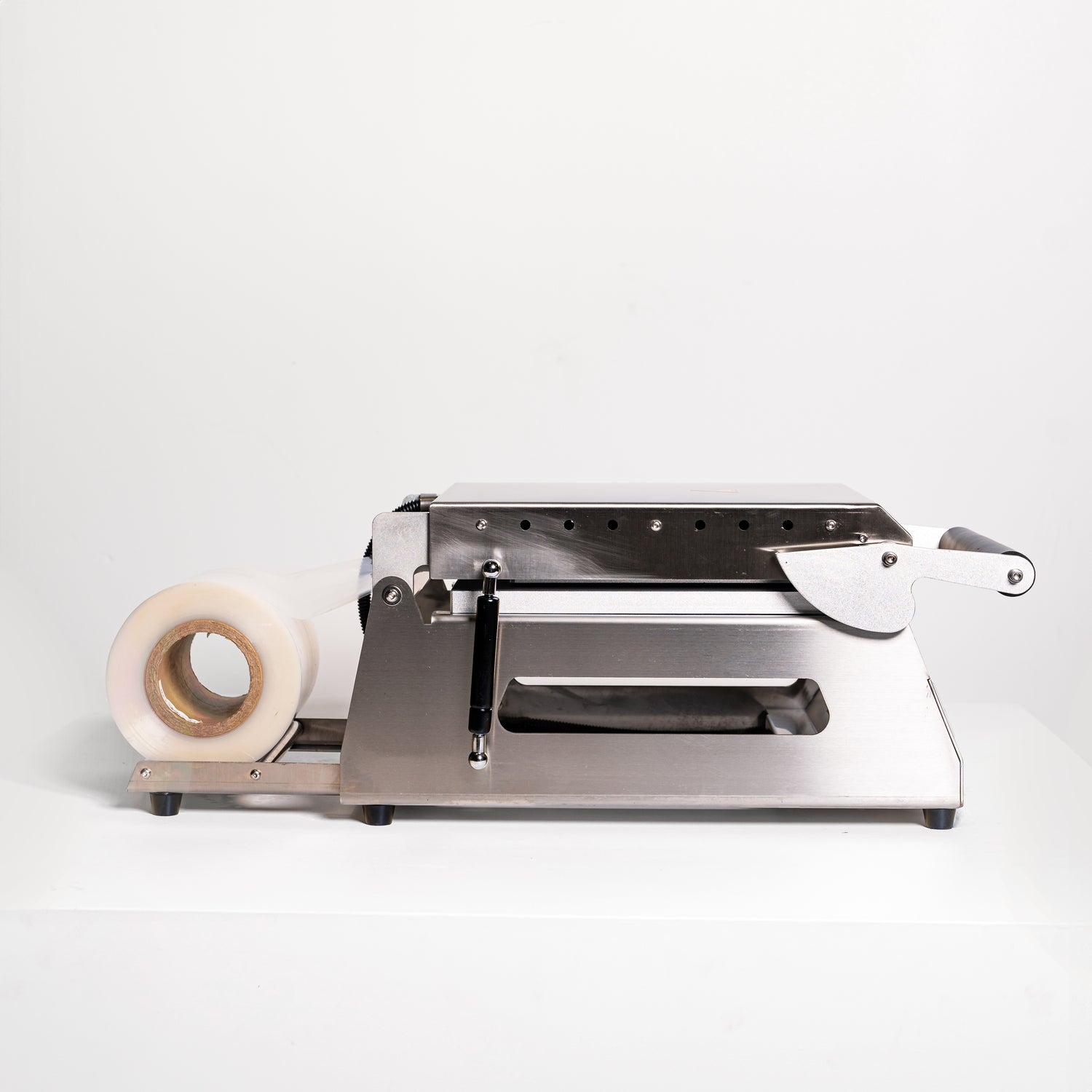

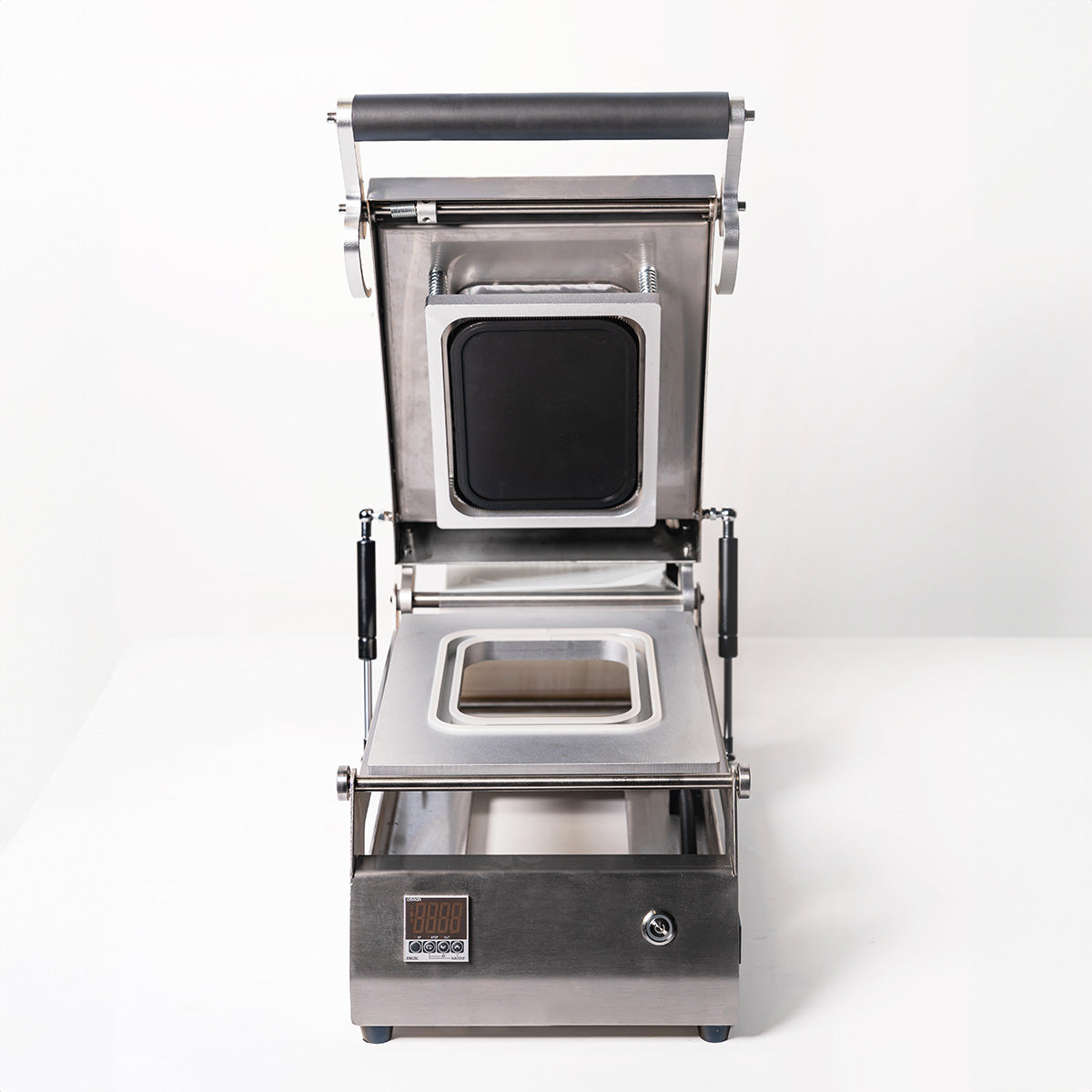

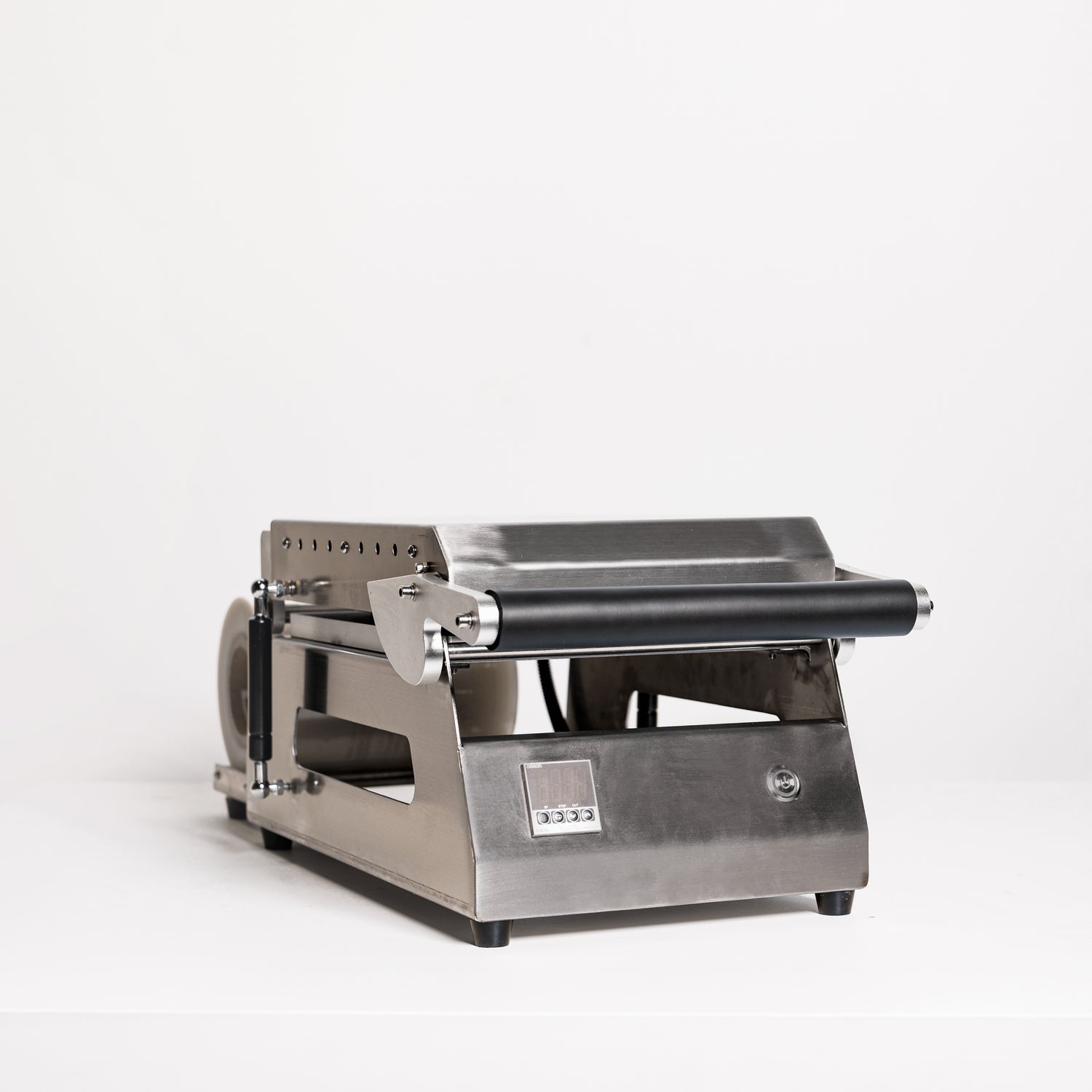

Tray Sealer Benchtop Manual | Single Cavity | 200x155mm CPET - 5TS
SKU:
END-5TS
Purchasing in bulk?
Contact our sales team for a custom quote on commercial quantities.
Compact, benchtop manual tray sealing machine engineered for small-scale food manufacturers, commercial test kitchens, and ready-meal packaging. Features precision perimeter profile trimming and digital temperature regulation to deliver hermetic, tamper-evident, retail-ready seals across 200x155 CPET and PP trays.
- Profile Film Trimming: Cleanly cuts lidding film flush to the tray rim in a single press—eliminating manual trimming and rough edges.
- Consistent Seal Pressure: Mechanical assisted-lock handle reduces operator fatigue while maintaining uniform pressure across the seal profile.
- Accurate Thermal Regulation: Digital PID temperature controller ensures fast heat-up and steady thermal stability across extended runs.
- Hygienic Build: Heavy-duty SUS304 stainless steel construction built for commercial washdown and food safety compliance.
- Plug & Play: Operates from standard 240V / 10A single-phase power with zero compressed air required.
Specifications:
| Product Code | END-5TS-012 |
| Operation | Manual benchtop |
| Dedicated Tray Size | 200mm (W) × 155mm (L) |
| Throughput Speed | Operator dependent (typically 4–6 trays/min) |
| Max Film Width | 220mm |
| Film Cutting | Perimeter contour trim around tray edge |
| Temperature Control | Digital PID regulation |
| Construction | SUS304 stainless steel |
| Electrical | 240V, 50Hz, 10A (Standard single-phase plug) |
| Air Required | None (100% mechanical) |
| Warranty | 2-year warranty |
Compatible Trays & Consumables
- Lidding Film: High-clarity 220mm lidding films (peelable and weld-seal barrier films)
- Matching Tray Codes: CPET and PP 200 × 155mm profiles (including END-12-1C, END-14-2B, END-14-2F, END-20155-2, END-212-1B, END-512-1I)
