Audion Vacuum Packer Double Chamber | 63m³/hr Busch Pump - VM 243
Enquiry Only
High-value machinery requires a technical consultation.
Heavy-duty, double-chamber vacuum packaging machine designed for continuous medium-to-large production runs. Built in the Netherlands, it handles food products, industrial hardware, and sensitive electronics with deep aluminium chambers and twin seal bars per chamber to maximise daily output.
- Twin 450 mm Seal Bars per Chamber: Double sealing (front and back) allows simultaneous sealing of multiple bags per cycle.
- Deep Chamber with Sight Glass: Accommodates taller or irregularly shaped items, with an integrated inspection window to monitor cycles in real time.
- Standard Soft-Air Function: Controls air re-entry smoothly to prevent punctures from sharp edges and protect delicate contents.
- Digital 10-Programme Memory: Store and recall precise vacuum, gas, and seal parameters for fast changeovers.
- High-Output 63 m³/h Pump: Delivers consistent, rapid cycle times between 15 and 40 seconds.
- Hygienic, Low-Maintenance Build: Stainless steel housing, wireless seal bars, and removable silicone holders for straightforward washdown and servicing.
- Warranty: 3-year manufacturer warranty.
Specifications
| Model | VM 243 |
| Origin | Made in the Netherlands |

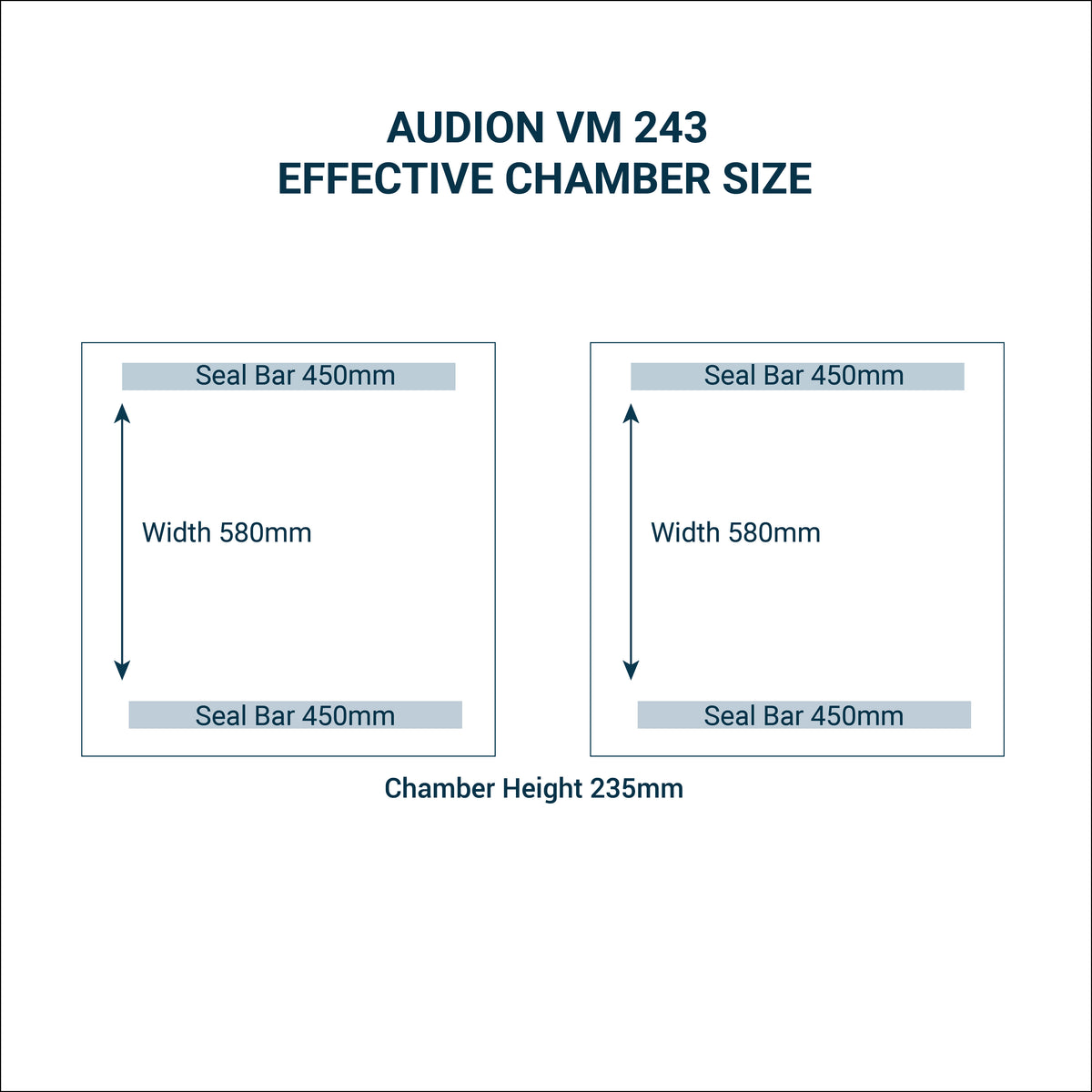

| Effective Chamber Size | (2x) 450 x 580 x 235 mm |
| Seal Bar Configuration | 2x 450 mm (Front & Back), wireless contact |
| Seal Type | Double seal (convex wires) |
| Pump Capacity | 63 m³/h Busch pump |
| Cycle Time | 15–40 seconds |
| Control System | Digital, 10-programme memory |
| Chamber / Lid Material | Deep aluminium chamber; aluminium lid with viewing glass |
| Housing Material | Stainless steel |
| Machine Dimensions | 1060 x 900 x 1070 mm (W x L x H) |
| Machine Weight | ~236 kg |
| Power Supply | 400V - 3 Phase - 50Hz (standard) |
| Included Accessories | High-density insert plates (optimises cycle time and pack height) |
| Warranty | 3 Years |
Available Configurations & Factory Options
Every VM 243 is built to specification. Optional upgrades include:
- Gas Flush (MAP): Modified atmosphere packaging with multi-cycle capability (up to 5 flushes) for ultra-low residual oxygen.
- Sealing Systems: Cut-off seal, 1-2 cut-off seal, 10 mm wide seal, or bi-active sealing for heavy-duty barrier pouches.
- Control Upgrades: Sensor control (stops at exact millibar vacuum) and liquid control (detects boiling points).
- Electronics Packaging: Full ESD (Electrostatic Discharge) compliance.
- Accessories: Inclined plates for liquids, extra gas nozzles, and alternate voltage configurations.
Availability: Built and configured to order. Contact our technical team to confirm current factory lead times and discuss tooling requirements for your application.
