Audion Floor-Standing Double Aluminum Chamber Vacuum Packaging Machine 63m³/h 2x450mm Seal-bars 243(Ali)
Enquire now
For enquiries about multiple products use our Quote feature, no login necessary!
Single Product Enquiry: Audion Floor-Standing Double Aluminum Chamber Vacuum Packaging Machine 63m³/h 2x450mm Seal-bars 243(Ali)

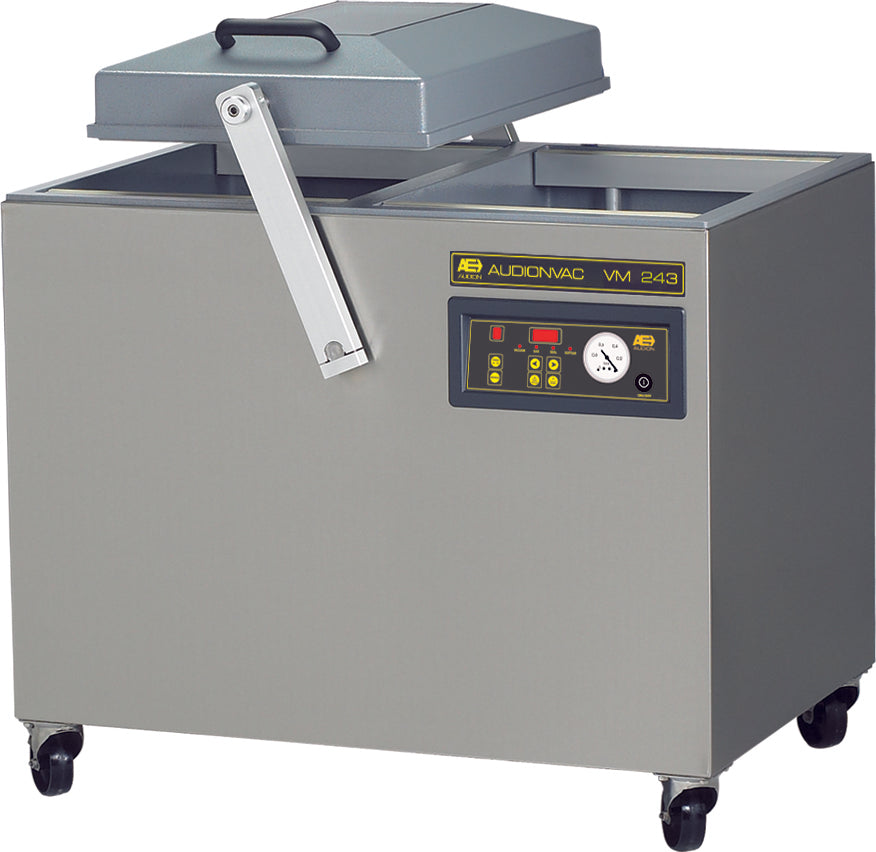

Audion VM 243 Medium-sized double aluminum deep chamber vacuum machine with monitoring glass in lid
The configurable Audion VM-243 delivers optimal packaging solutions, safely protecting and preserving your products.
Effortlessly process a wide range of films and products, including delicate, electrostatic-sensitive, and irregularly shaped medium-to-large items. The ergonomic lid with monitoring glass allows you to oversee the packaging process.
3 Year Warranty
Made in the Netherlands
Specifications
| Product Code | VM243 |
| Seal Bar Length | 2x 450mm (front & back) |
| Pump Capacity | 63m³/h |
| Machine Cycle | 15-40 sec |
| Control | Digital control with up to 10 program memory |
| Effective Chamber Size | (2x) 450 x 580 x 235mm |
| Seal Bars | Wireless Contact Easy Clean |
| Insert Plate | Included insert plate enables faster cycles and better product positioning |
| Chamber Material | Aluminum lid with sight glass and deep aluminum chamber |
| Housing Material | Stainless steel |
| Warranty | 3 Years |
| Special Features | Soft Air Function - To pack fragile or sharp products without damaging the products and the bag. |
| Easy pump maintenance and cleaning program | |
| Weight | ~236kg |
| Size (WxLxH) | 1060 x 900 x 1070 mm |
| Power Supply | 400V-3P-50Hz (standard) |
| Optional Extras | Cut-off seal, 1-2 cut-off seal, wide (10mm seal), bi-active seal, ESD (electrostatic discharge), gas flush, aluminum end blocks, sensor control, liquid control, inclined plate, number of gas nozzles, alternate power supply. |
Benefits
Maximum efficiency
Standard 2 seal bars for optimized output.
Optimum hygiene
Standard double seal (2 wires); convex sealing wires for safer sealing results.
Time control
To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
Soft air
To pack fragile or sharp products without damaging the products and the bag.
10 program memory
Quick selection of the correct program for your products.
Fast cycle
Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
Ease of use
User friendly digital control panel, plug and play.
Multicycle (with Gas Flush)
Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
Vacuum pump
63 m3/h vacuum pump for a fast packaging cycle.
Aluminum lid with sight glass
To supervise the proceeding packaging process.
Deep aluminum chamber
For vacuum packaging of higher products.
Maintenance friendly
Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
Construction
High quality material, maintenance friendly and easy to clean construction.
Warranty
3 years.
Application
Food & Non Food Industry
Fully configurable. A wide range of options are available for optimal presentation and preservation of products including delicate electrical components.
This machine is custom-configured and manufactured to order. As it is not held in stock, please contact us to confirm current lead times.
